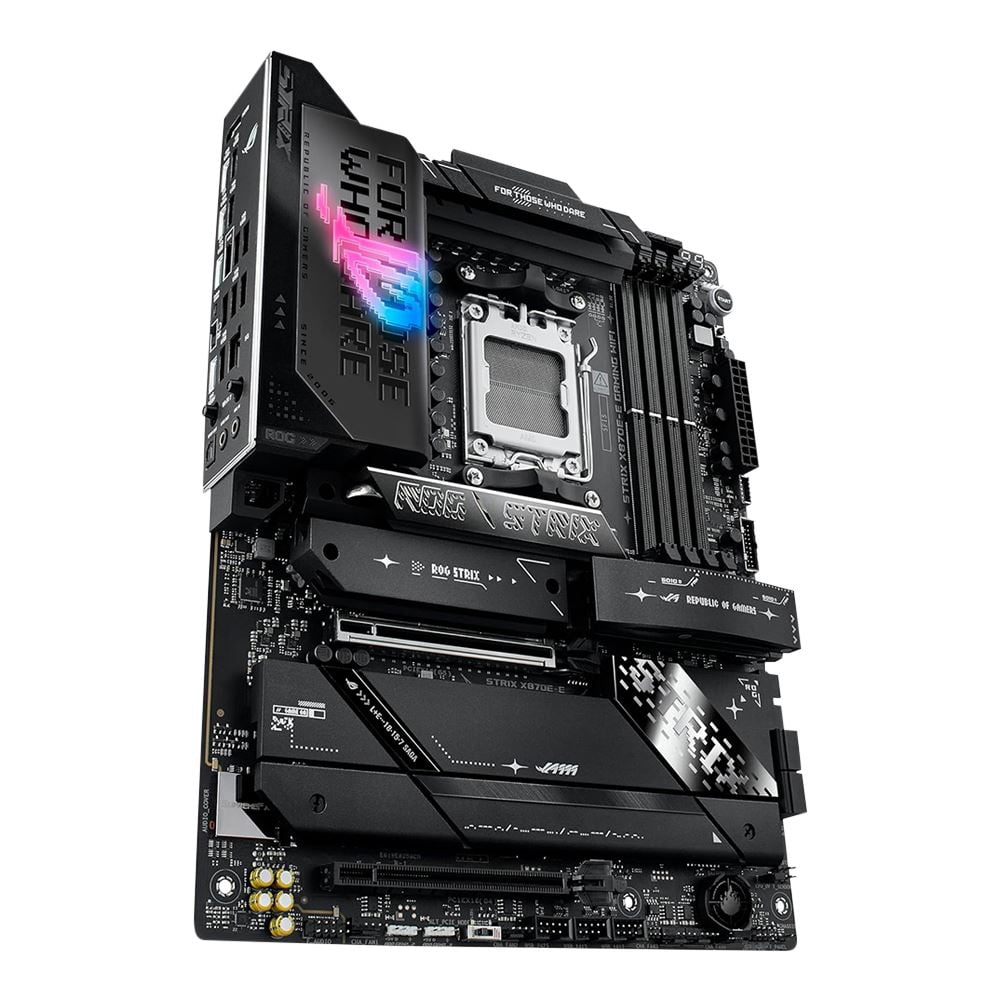

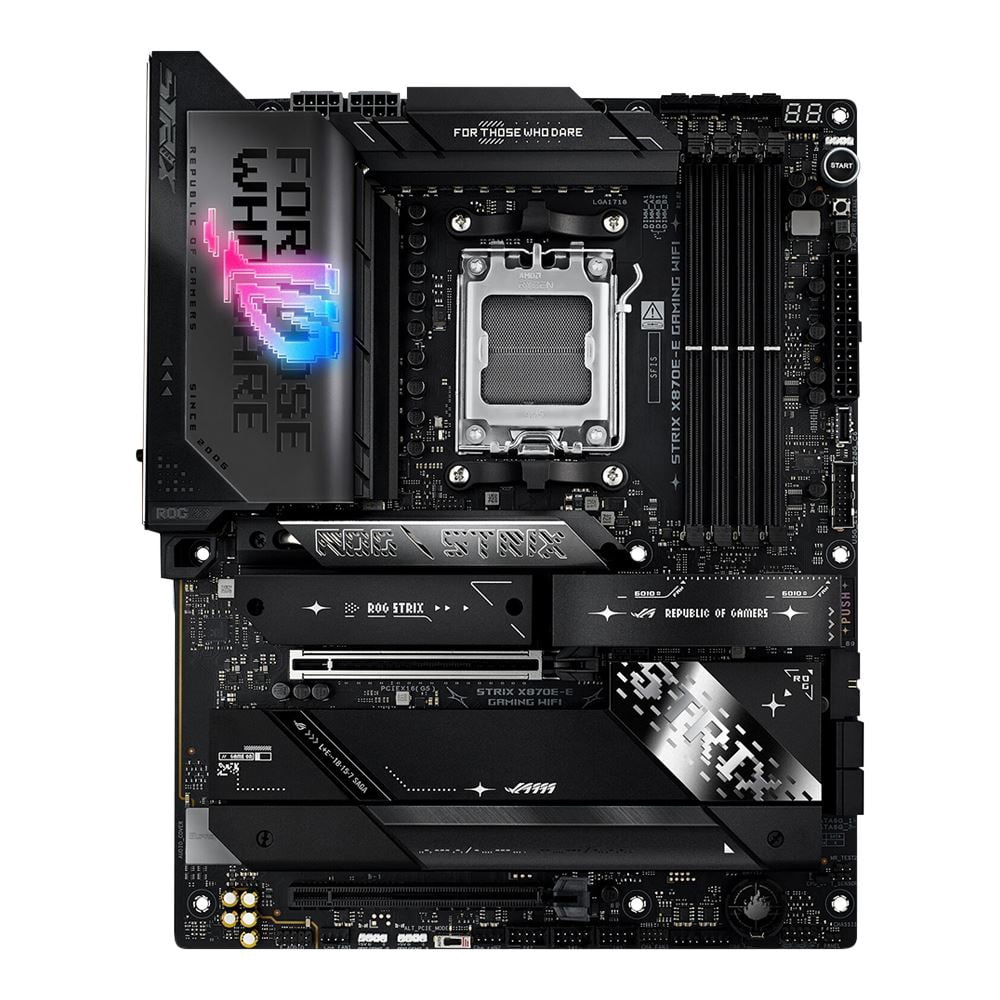

ASUS X870E-E ROG Strix Gaming R2/USBC WiFi AMD AM5 ATX Motherboard, Ryzen 9000 Ready, DDR5, PCIe 5.0, WiFi 7, Dual USB4

Unleash the full potential of your next-generation gaming rig with the ASUS ROG Strix X870E-E Gaming WiFi. Designed for enthusiasts and pro-level gamers, this AM5 motherboard is engineered specifically for AMD Ryzen 9000 Series processors. Experience lightning-fast data transfers and future-proof graphics support with PCIe 5.0 across both expansion slots and M.2 storage. Equipped with the latest WiFi 7 technology and 5Gb Ethernet, this board ensures lag-free online gaming and ultra-fast file downloads. The robust power delivery and advanced AI Overclocking features allow you to push your hardware to the limit while maintaining peak stability. With dual USB4 Type-C ports, 256GB DDR5 memory support, and a sleek, premium design, the ROG Strix X870E-E is the ultimate foundation for a high-performance AI PC or elite gaming build.

• Ultimate AM5 Performance: Optimized for AMD Ryzen 9000, 8000, and 7000 Series desktop processors to deliver elite gaming power.
• Next-Gen Connectivity: Features dual USB4 Type-C ports (40Gbps) and WiFi 7 with an ASUS EZ Antenna for high-speed wireless networking.
• PCIe 5.0 Support: Fully prepared for the future with PCIe 5.0 ready x16 expansion slots and five M.2 slots for massive, ultra-fast storage.
• Intelligent AI Controls: ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II simplify optimization for maximum performance.
• High-Speed Memory: Supports up to 256GB of dual-channel DDR5 memory with speeds exceeding 8000+ MHz (OC).
• DIY-Friendly Design: Includes the PCIe Slot Q-Release Slim, M.2 Q-Latch, and a BIOS FlashBack button for a seamless building experience.
• Premium Audio & Cooling: Integrated ROG SupremeFX ALC4080 audio for immersive sound and a multi-layered heatsink design to keep components cool under heavy loads.
• Core PlatformChipset: AMD X870ECPU Socket: AM5 (Optimized for AMD Ryzen 9000, 8000, and 7000 Series)Form Factor: ATX ($12.00" \times 9.61"$)BIOS: 256Mb AMI UEFI BIOSMemory SupportType: DDR5 (Dual Channel)Slots: 4 x 288-pin DIMMMax Capacity: 256GB (Up to 64GB per slot)Speeds: 8000+ MHz (Overclocked)Compatibility: Supports Non-ECC and Non-Registered ECC memoryExpansion & StoragePCI Express Slots:1 x PCIe 5.0 x16 (Primary)1 x PCIe 4.0 x16M.2 Storage: 5 x M.2 Slots (Socket 3, M Key)Supports 2242, 2260, 2280, and 22110 form factorsSATA: 4 x SATA 6Gb/s portsRAID Support: RAID 0, 1, 5, and 10Connectivity & NetworkingWireless: WiFi 7 (802.11be) + Bluetooth v5.4Wired LAN: Realtek 5Gb Ethernet ($100/1000/2500/5000$ Mbps)Rear USB Ports:2 x USB4 Type-C (40 Gb/s)1 x USB 3.2 Gen 2x2 Type-C1 x USB 3.2 Gen 2 Type-C9 x USB 3.2 Gen 2 Type-AVideo Output: 1 x HDMI 2.1Audio & Internal I/OAudio: ROG SupremeFX ALC4080 (7.1 Channel High Definition Audio)Cooling Headers: 2 x CPU Fan, 1 x Water Pump, 5 x System Fan headersInternal USB: 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 3 x USB 2.0 headersRGB: 3 x Addressable LED HeadersSpecial Hardware: PCIe Slot Q-Release Slim, M.2 Q-Latch, BIOS FlashBack button
• Chipset: AMD X870E
• CPU Socket: AM5 (Optimized for AMD Ryzen 9000, 8000, and 7000 Series)
• Form Factor: ATX ($12.00" \times 9.61"$)
• BIOS: 256Mb AMI UEFI BIOS
• Type: DDR5 (Dual Channel)
• Slots: 4 x 288-pin DIMM
• Max Capacity: 256GB (Up to 64GB per slot)
• Speeds: 8000+ MHz (Overclocked)
• Compatibility: Supports Non-ECC and Non-Registered ECC memory
• PCI Express Slots:1 x PCIe 5.0 x16 (Primary)1 x PCIe 4.0 x16
• 1 x PCIe 5.0 x16 (Primary)
• 1 x PCIe 4.0 x16
• M.2 Storage: 5 x M.2 Slots (Socket 3, M Key)Supports 2242, 2260, 2280, and 22110 form factors
• Supports 2242, 2260, 2280, and 22110 form factors
• SATA: 4 x SATA 6Gb/s ports
• RAID Support: RAID 0, 1, 5, and 10
• Wireless: WiFi 7 (802.11be) + Bluetooth v5.4
• Wired LAN: Realtek 5Gb Ethernet ($100/1000/2500/5000$ Mbps)

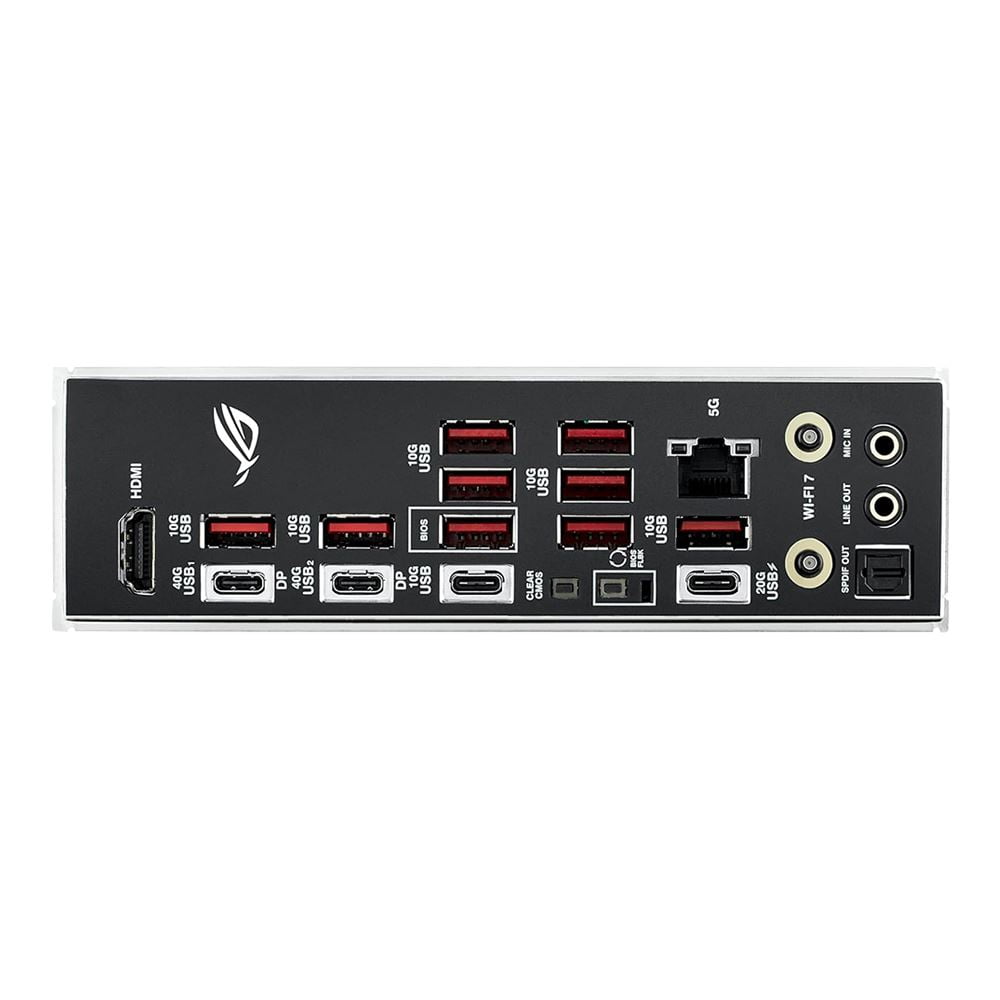

• Rear USB Ports:2 x USB4 Type-C (40 Gb/s)1 x USB 3.2 Gen 2x2 Type-C1 x USB 3.2 Gen 2 Type-C9 x USB 3.2 Gen 2 Type-A
• 2 x USB4 Type-C (40 Gb/s)
• 1 x USB 3.2 Gen 2x2 Type-C
• 1 x USB 3.2 Gen 2 Type-C
• 9 x USB 3.2 Gen 2 Type-A
• Video Output: 1 x HDMI 2.1
• Audio: ROG SupremeFX ALC4080 (7.1 Channel High Definition Audio)
• Cooling Headers: 2 x CPU Fan, 1 x Water Pump, 5 x System Fan headers
• Internal USB: 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 3 x USB 2.0 headers
• RGB: 3 x Addressable LED Headers
• Special Hardware: PCIe Slot Q-Release Slim, M.2 Q-Latch, BIOS FlashBack button
